Introduction
Every institutional claim a hospital or infusion center submits depends on a number most clinicians never see: the revenue code. These four-digit codes organize facility charges, room-and-board lines, and department-based services on the UB-04 (CMS-1450) claim form and its electronic counterpart, the 837I.
Get the mapping wrong, and a clean claim can turn into a stack of denials, missing-detail requests, or a distorted view of what a service line actually earns.
For infectious disease practices running OPAT or infusion programs, that risk sits squarely in facility billing. Drug administration, lab monitoring, and observation hours all generate separate revenue-code lines that must align with payer rules.
This guide defines revenue codes, shows where they live on the UB-04, compares them with CPT and HCPCS codes, and walks through a practical validation process before the claim goes out.
Key Takeaways
- Revenue codes identify the facility department, accommodation, or service category, not the procedure, supply, or diagnosis.
- Form Locator 42 holds the revenue code; Form Locator 47 holds the matching charge.
- The right code depends on care setting, bill type, and documentation, not diagnosis alone.
- Recurring mapping errors usually signal a chargemaster or workflow problem, not an isolated coder mistake.
- Confirm current NUBC, CMS, and payer rules before finalizing any claim.
What Are Revenue Codes in Medical Billing?
A revenue code is a four-digit number institutional providers use to classify an accommodation, department, or category of facility service tied to a specific charge line. Hospitals, outpatient infusion centers, and other facility-based providers report these codes on every claim. It's how a payer knows whether a charge came from the pharmacy, the lab, or a private room.
Revenue codes belong to facility billing, not professional billing. When an infectious disease physician bills for an evaluation visit or a procedure, that charge typically travels on a separate professional claim. The facility charge for the same encounter (infusion chair time, nursing administration, the drug itself) moves through the institutional claim instead.
UB-04, CMS-1450, and 837I
The paper claim form institutional providers use is officially called the CMS-1450, though most people in the field still call it the UB-04. Its electronic equivalent is the 837I format, which Medicare and most commercial payers now require for routine claim submission.
Key distinctions:
- The UB-04/CMS-1450 is the paper version; 837I is the electronic version, carrying the same core data.
- Revenue codes appear on both formats, just in different field structures.
- CMS and NUBC specifications change over time, so verify current field requirements against the latest manuals rather than older references.
Revenue codes tell a payer what category of service generated a charge line, not what procedure was performed or what drug was administered. That distinction matters more once a claim includes multiple charge lines from one visit.
Where Revenue Codes Appear on the UB-04
Revenue codes sit in Form Locator 42 of the UB-04. The charge tied to that code sits in Form Locator 47, and the two must be read together.
A revenue code without its matching charge, or a charge that doesn't fit its code's category, creates a mismatch that payers flag quickly, according to the Medicare Claims Processing Manual.
A single UB-04 line typically carries several connected pieces:
- Revenue code: identifies the facility charge category, such as pharmacy, lab, or room and board
- CPT/HCPCS code: supplies procedure or item detail when required, often reported in Form Locator 44
- Units: the quantity of service or product billed
- Charge: the billed dollar amount for that line
A revenue code on the claim doesn't, by itself, prove coverage or guarantee payment. Medical necessity, documentation, bill type, and the payer's specific policy all factor into whether a line gets paid. Treating the revenue code as a stand-in for medical necessity is a common, and avoidable, mistake.
Why Revenue Codes Matter for Facility Billing
Accurate revenue-code assignment affects more than one claim. It shapes charge capture accuracy, claim clarity, and how quickly a facility gets paid.
What Goes Wrong With a Mismatched Code
When a revenue code doesn't match the service delivered, the effects compound fast:
- Claim-scrubbing edits reject or flag the line before it reaches the payer
- Payers return claims requesting missing detail, adding weeks to the reimbursement cycle
- Rework consumes staff time that should go toward new claims
- Service-line economics look distorted, with revenue attributed to the wrong department

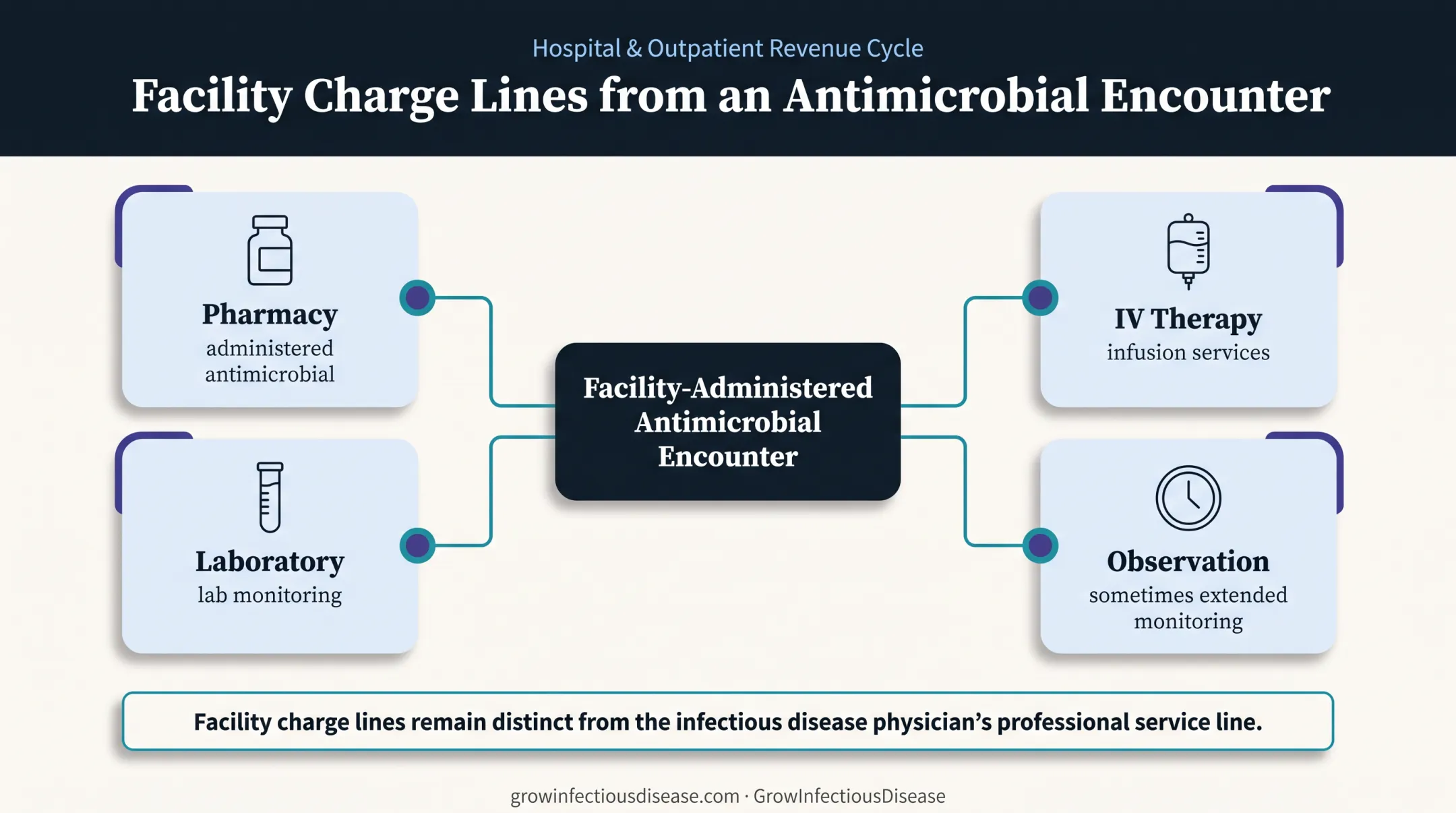

For practices running infusion or OPAT programs, the stakes are concrete. A facility encounter with an administered antimicrobial, infusion services, and lab monitoring can generate three or four charge lines in one visit: pharmacy, IV therapy, laboratory, and sometimes observation.
Each line needs its own revenue-code review, matched to the setting and the payer's requirements.
No single revenue code works the same way across every payer and setting. What's correct for one Medicare Administrative Contractor's jurisdiction may require a different approach under a commercial payer's contract.
This is also where facility and professional billing diverge. The infusion suite's facility charge for drug administration and monitoring is a separate claim line from the infectious disease physician's professional service, even though both stem from the same patient visit.
Types of Revenue Codes on the UB-04
The same clinical encounter can generate several facility charge lines, each needing its own revenue-code category. The groupings below are practical categories, not a complete code list. Confirm current descriptions against NUBC, CMS, your Medicare Administrative Contractor, or the relevant payer's published tables before applying them.
Accommodation and Room-and-Board Revenue Codes
These codes classify inpatient accommodation charges, the room itself, not the care delivered in it. Common categories include:
- 011X: Room and board, private
- 012X: Room and board, semi-private
- 020X: Intensive care unit
- 021X: Coronary care unit
According to Noridian's revenue code table, these accommodation families break down further by room type and level of care. Selecting the right one depends on admission status, dates of service, and documented level of care, not the diagnosis driving the admission. Days or units billed should match the facility's own records exactly.
Ancillary and Department-Based Revenue Codes
Ancillary codes organize charges by department rather than by room:
- 025X: Pharmacy, including IV solutions
- 030X/031X: Laboratory and pathology
- 032X: Diagnostic radiology
- 036X: Operating room services
- 045X: Emergency room
- 026X: IV therapy, including infusion pump and pharmacy services within infusion
- 076X: Specialty services, including observation hours
These categories organize the charge; they don't replace the procedure, drug, or diagnostic coding a payer still requires. For infectious disease practices, this is where facility billing and clinical workflow intersect most directly. Hospital-administered antimicrobial therapy might generate pharmacy and IV-therapy lines. Lab monitoring generates its own laboratory line, and extended monitoring may fall under observation. Each stays distinct from the ID physician's separate professional service line.
Detailed-Coding and Payer-Specific Situations
Some categories require more than a revenue code alone. Certain drug and procedure charges need specific HCPCS detail attached before a payer will process the line.
- 0636: Pharmacy items requiring detailed coding (a HCPCS code is expected with the revenue code)
National code-set guidance sets the baseline, but individual payers add their own edits and contractual requirements. A facility's chargemaster configuration can further change how a code is reported.
On 0972 specifically, CMS's claim revenue center reference lists it under professional fees as an extension of 096X for diagnostic radiology. It is not a general-purpose code for other service types. Confirm the description against current CMS and payer references before use, since meanings can change between manual editions.
How to Choose and Validate the Right Revenue Code
The correct revenue code comes from the actual service or accommodation delivered, matched against setting, bill type, documentation, and payer requirements. Familiarity with a code, its reimbursement rate, or the diagnosis alone does not determine the choice.

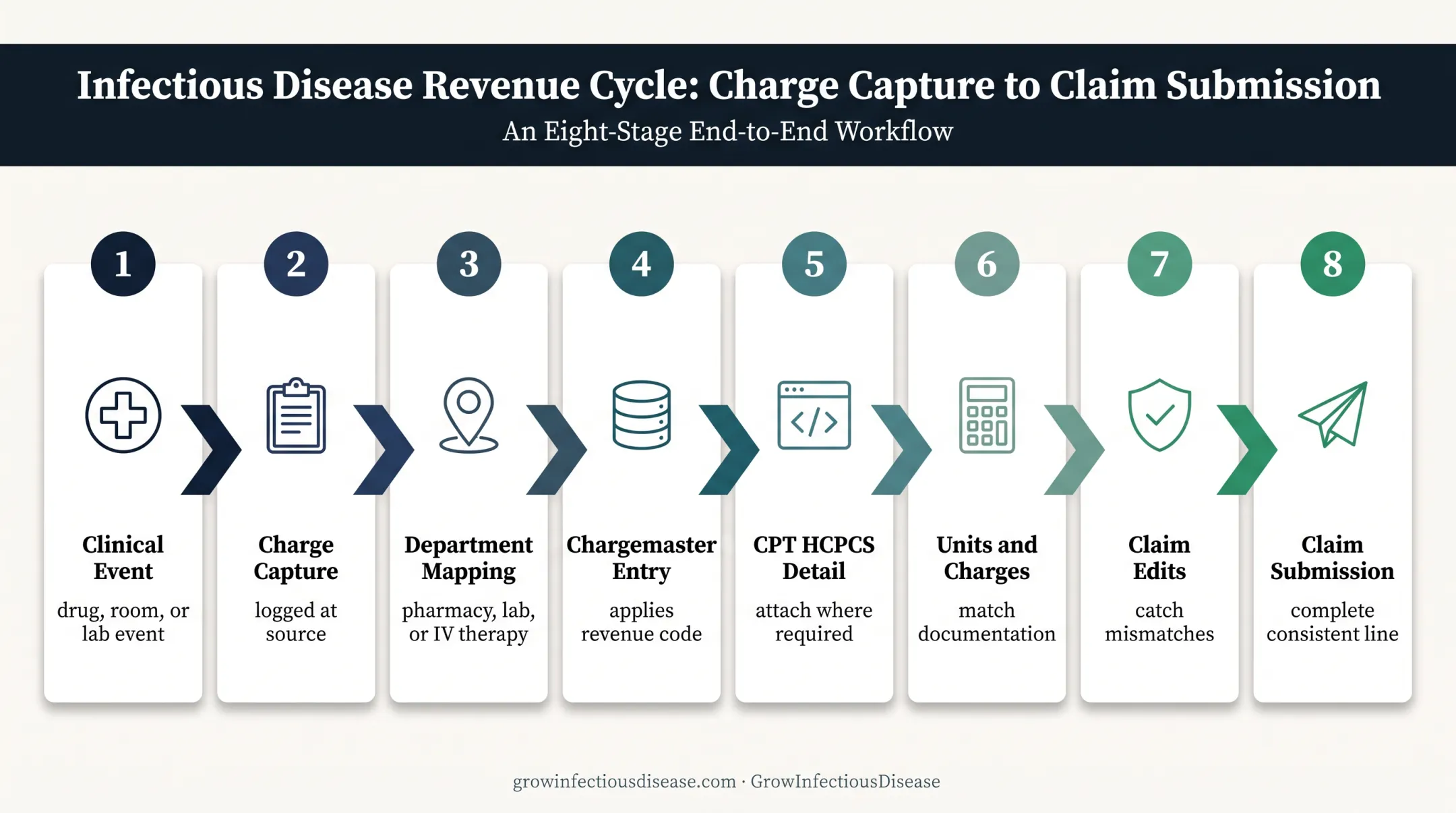

The Validation Sequence
A clean claim follows a consistent path from the clinical event to final submission:
- Clinical or operational event occurs: a drug is administered, a room is used, a lab test is run
- Charge capture records it: the event is logged at its source, ideally in real time
- Department mapping assigns the category: pharmacy, laboratory, IV therapy, and similar
- Chargemaster entry applies the revenue code: tied to the facility's own item master
- CPT/HCPCS code attaches where required: supplying procedure or drug detail
- Units and charges are finalized: matched to documentation
- Claim edits run: catching mismatches before submission
- The claim submits: as a complete, internally consistent line
Before changing any mapping, check current NUBC and CMS instructions, your Medicare Administrative Contractor's guidance, specific payer policies, and your own facility's billing rules. A code that worked under last year's contract might not work under this year's.
Working Through a Facility-Administered Antimicrobial Example
Say a patient receives a facility-administered antimicrobial infusion with associated lab monitoring. Before submitting, a reviewer would confirm:
- The setting (outpatient infusion suite, observation, or inpatient)
- The service category each charge belongs to (pharmacy, IV therapy, laboratory)
- Whether the drug or procedure detail requires a specific HCPCS code alongside the revenue code
- Whether units billed match documented administration time and drug quantity
- Whether payer-specific requirements, such as prior authorization or site-of-care restrictions, have been met
This process doesn't produce a reimbursement figure or an assumed payment outcome. It confirms the claim is internally consistent and ready for payer review.
When Errors Keep Recurring
If the same mismatch shows up across multiple claims, that's rarely a single coder's mistake. It usually signals a chargemaster configuration issue, an interface problem between clinical and billing systems, or a charge-capture gap at the point of service. Fixing the individual claim won't stop the pattern; the upstream process needs review.
What to Check Before Submitting a UB-04 Claim
Before a UB-04 claim goes out, run through a final consistency check:
- Does the revenue code match the actual service delivered, and is it valid for this bill type, setting, and payer?
- Are the line's components aligned: description, CPT/HCPCS code, units, charge, and any required modifiers?
- Is supporting documentation in place, including authorization, medical necessity notes, and drug or supply detail?
- Have payer-specific reporting requirements been addressed, not just national code-set guidance?

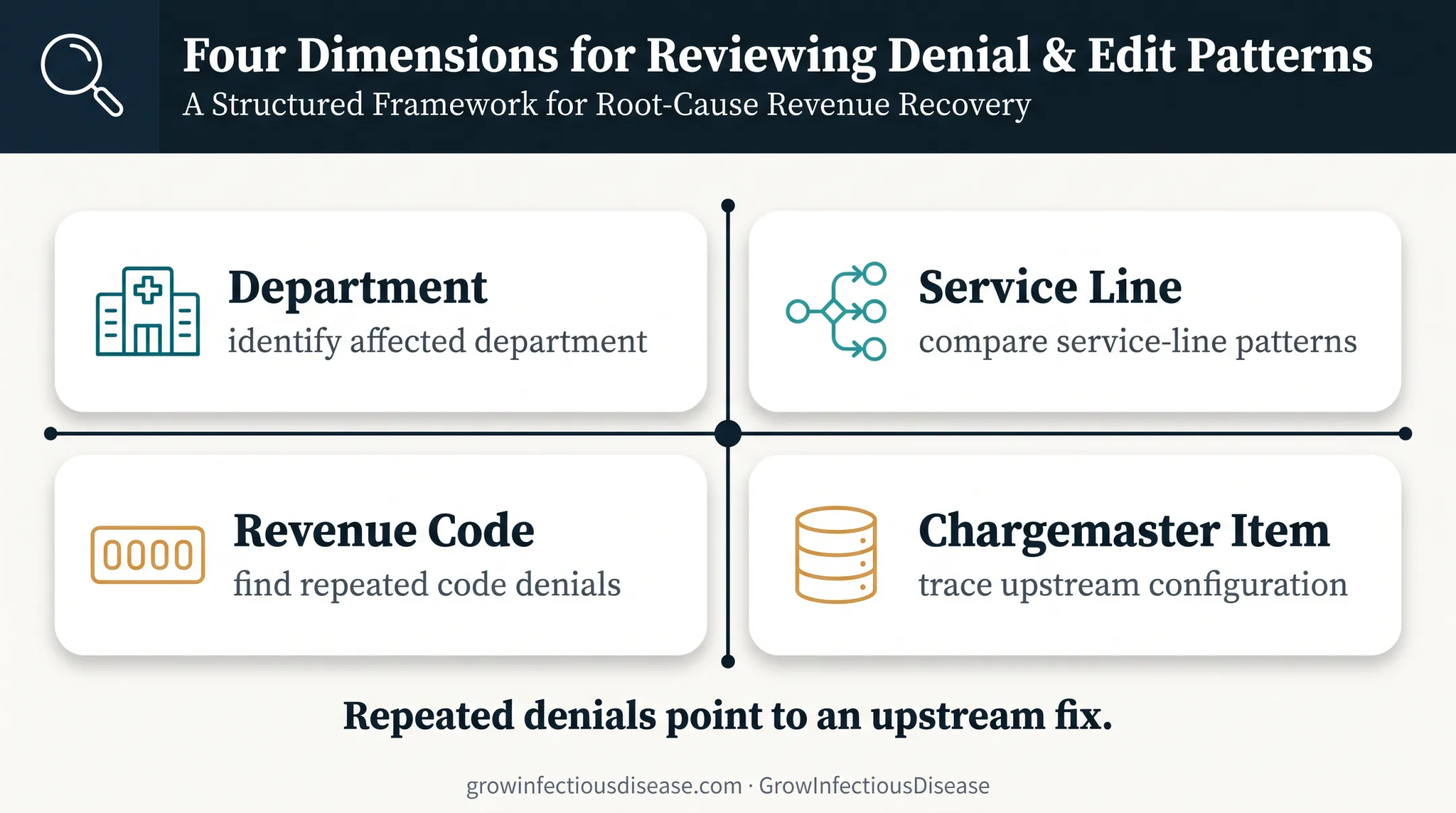

Beyond single-claim checks, review denial and edit patterns by department, service line, revenue code, and chargemaster item. A code that denies repeatedly across different patients points to an upstream fix, not a one-off correction.
For infectious disease practices managing OPAT and infusion programs, pattern review carries extra weight. Facility charges for drug administration, lab monitoring, and observation hours often move together on the same claim.
GrowInfectiousDisease publishes plain-English resources on how reimbursement mechanics and revenue-cycle decisions affect OPAT and infusion economics. Use them to understand the financial picture, but rely on current payer and coding guidance when you finalize a claim.
Conclusion
Revenue codes organize facility charges on institutional claims. They work alongside CPT, HCPCS, and diagnosis coding, never in place of them.
Accurate UB-04 billing comes down to matching the revenue code to the service setting, bill type, documentation, units, charges, and the payer's current rules. Skip any one of those pieces, and the claim gets flagged, delayed, or paid incorrectly.
If mapping errors keep showing up on the same revenue code or department, look past the individual claim first. Check the chargemaster, the charge-capture workflow, and the interface between clinical and billing systems.
Code descriptions, payer edits, and NUBC guidance all change over time. Before finalizing any claim, verify the current rule against an authoritative source rather than relying on last quarter's answer.
Frequently Asked Questions
What is a revenue code on a UB04?
A revenue code is a numeric identifier that classifies the facility service or accommodation tied to a charge line on an institutional claim. "UB04" commonly refers to the UB-04/CMS-1450 paper claim form used for this reporting.
What is the difference between a CPT code and a revenue code?
A revenue code categorizes the facility department or charge type, such as pharmacy, laboratory, or room and board. A CPT code describes the specific procedure or service performed. Many claim lines report both together.
What is revenue code 972?
CMS's claim revenue center reference lists 0972 under professional fees, extension of 096X, specifically for diagnostic radiology. Confirm this description against current CMS and payer sources, since code meanings can be revised.
Where are revenue codes reported on the UB-04?
Revenue codes are reported in Form Locator 42. Review that code alongside the matching charge in Form Locator 47 and, where applicable, HCPCS detail in Form Locator 44.
Do all revenue codes require a CPT or HCPCS code?
No. Requirements vary by revenue-code category, claim type, and payer. Some categories, such as certain drug or procedure lines, require detailed HCPCS coding. Always check current NUBC, CMS, and payer-specific instructions.
